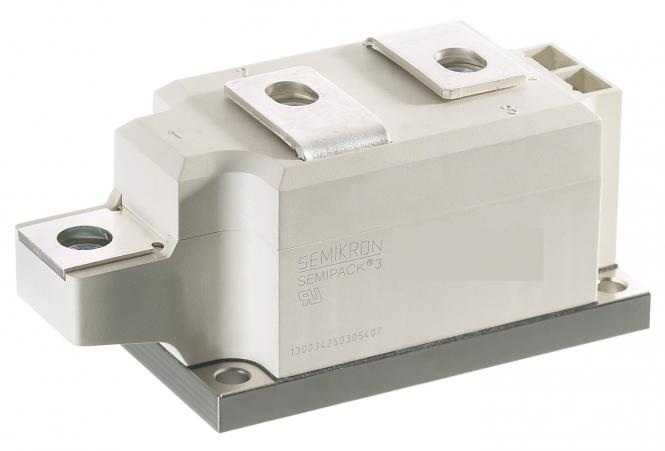

Why Do Thyristors Matter in Advanced Electrical Switching?

Electrical systems increasingly depend on accurate switching and controlled power delivery. Whether the application involves industrial machinery, energy conversion, transport equipment, or voltage regulation, engineers need components capable of handling substantial electrical loads with dependable performance. Thyristors remain an important solution for these demanding conditions.

Thyristors are solid-state semiconductor devices used to control electrical current. They can operate as electronically controlled switches and are particularly effective in systems involving high voltage or high current. Their specialised internal structure allows them to move from a blocking state into conduction after receiving an appropriate trigger signal.

Because of this behaviour, Thyristors are widely associated with power control, rectification, industrial automation, and electrical protection.

What Makes Thyristors Suitable for High-Power Switching?

High-power circuits require components that can tolerate electrical stress without introducing excessive losses.

Thyristors are designed with this requirement in mind. Once conducting, they can carry significant current while maintaining a relatively low voltage drop across the device.

This makes them useful in applications where efficient switching is more important than extremely high switching speed.

Some key advantages include:

• High voltage capability
• Strong current handling
• Low on-state losses
• Compact solid-state construction
• No mechanical contacts
• Reliable switching performance
• Long operational life
• Compatibility with automated control systems

These characteristics allow Thyristors to perform tasks that would otherwise require larger or more complex switching arrangements.

How Does a Thyristor Respond to Electrical Conditions?

The behaviour of a thyristor depends on the relationship between the voltage across the device, the current flowing through it, and the control signal applied to its gate.

Before activation, the device can block forward current even when voltage is present.

A suitable gate pulse changes the internal condition of the semiconductor layers and causes conduction to begin.

Once the device has entered its on-state, the gate normally loses direct control over conduction. The main circuit current keeps the thyristor active until that current becomes sufficiently low.

This operating principle is different from many transistors, where the control terminal continuously influences switching.

Why Is the Turn-On Characteristic So Important?

The controlled turn-on behaviour of Thyristors allows designers to determine exactly when electrical power reaches a load.

This is especially important in alternating-current systems.

Instead of allowing the entire AC waveform to pass, the thyristor can be triggered partway through the cycle. Changing this trigger point changes the amount of electrical energy delivered.

This technique can be used to regulate:

• Motor input
• Heater power
• Lamp intensity
• Charging current
• Rectifier output
• Industrial process energy

Precise firing control gives engineers a flexible way to adjust power without using bulky mechanical regulation methods.

What Is Natural Commutation?

Natural commutation is a useful concept in AC thyristor circuits.

Alternating current naturally passes through zero during every cycle. When current falls below the holding current of the thyristor, the device switches off automatically.

This makes AC circuits particularly convenient for many thyristor applications because the waveform itself helps reset the device.

When the next cycle begins, another trigger pulse can be applied at the desired point.

By repeatedly controlling this timing, the circuit can regulate average power delivered to the load.

How Is DC Switching Different?

Direct current does not naturally cross zero in the same way as AC.

This means a conventional thyristor may continue conducting once it has been triggered.

To switch it off in a DC system, designers may need to use a separate commutation circuit that temporarily reduces current below the holding level.

This additional requirement explains why some thyristor arrangements are particularly associated with controlled rectifiers and AC power systems.

However, specialised thyristor families have also been developed for applications that require greater turn-off control.

Where Are Thyristors Used in Power Supplies?

Power supplies frequently need to convert, regulate, or protect electrical energy.

Thyristors can perform several useful roles in these systems.

In controlled rectifier circuits, they help convert AC input into an adjustable DC output. Instead of conducting automatically like a standard diode, the thyristor begins conduction only after it receives a trigger.

This allows the output level to be controlled electronically.

Possible applications include:

• Industrial DC power supplies
• High-current chargers
• Welding equipment
• Electroplating systems
• Controlled battery systems
• DC drive equipment

This controllability makes Thyristors useful when fixed rectification would not provide enough flexibility.

How Do Thyristors Support Electrical Protection?

Thyristors are not limited to power regulation. They can also support protection circuits.

One well-known example is the crowbar protection circuit.

If a power supply produces an unsafe overvoltage, the thyristor can be triggered to create a low-resistance path across the supply. This causes a large current to flow and normally activates a fuse or another protective device.

The purpose is to prevent the dangerous voltage from reaching sensitive downstream electronics.

This makes thyristor-based protection valuable in certain power supplies and industrial systems.

What Is the Role of Thyristors in Motor Drives?

Electric motors can require substantial electrical power, particularly during startup or under changing mechanical loads.

Thyristors can regulate the energy supplied to the motor and support smoother operating behaviour.

They may be used in motor systems for:

• Controlled acceleration
• Speed adjustment
• Torque regulation
• Reduced starting current
• Soft starting
• DC motor control

Managing power electronically can reduce mechanical stress and improve the operating behaviour of connected machinery.

Why Are Thyristors Effective in Heating Applications?

Industrial heating is another area where accurate power control is valuable.

Processes involving plastics, metals, chemicals, food manufacturing, or materials treatment often need carefully maintained temperatures.

Thyristors can control how much power reaches heating elements without physically opening and closing mechanical contacts.

This approach provides:

• Rapid power adjustment
• Accurate temperature response
• Reduced mechanical wear
• High switching endurance
• Better process consistency

For systems operating throughout long production cycles, these advantages can significantly improve control reliability.

Which Thyristor Parameters Influence Circuit Design?

Selecting a device requires attention to more than maximum current.

Several technical ratings determine whether the thyristor can perform reliably in a given circuit.

Important parameters include:

• Repetitive peak blocking voltage
• Average on-state current
• RMS current
• Peak surge-current rating
• Gate trigger current
• Gate trigger voltage
• Holding current
• Latching current
• Maximum junction temperature
• Turn-on characteristics
• Thermal resistance

The correct combination depends on the electrical supply, expected load behaviour, switching method, and environmental conditions.

Why Are Surge Ratings Important?

Industrial circuits do not always operate under perfectly stable conditions.

Motors, transformers, capacitive loads, and power-line disturbances can create temporary current or voltage surges.

A thyristor must be able to tolerate these short-duration events without damage.

Surge-current ratings therefore play an important role when selecting devices for demanding applications.

Adequate design margin helps protect the system during startup events, transient conditions, or unexpected load changes.

How Does Heat Affect Thyristor Performance?

Thermal management has a direct influence on semiconductor reliability.

When a thyristor carries current, some energy is converted into heat. As current increases, thermal dissipation becomes increasingly important.

If heat cannot escape effectively, junction temperature may rise above the permitted limit.

Designers often use:

• Heat sinks
• Thermal interface compounds
• Forced-air cooling
• Proper mounting hardware
• Temperature monitoring
• Suitable spacing between components

Maintaining safe operating temperatures can improve both reliability and service life.

What Makes Thyristors Different From IGBTs and MOSFETs?

MOSFETs and IGBTs are also important power semiconductor devices, but they operate differently.

MOSFETs are known for fast switching and are widely used in lower-to-medium voltage power conversion.

IGBTs combine useful transistor control with strong power capability and are common in inverters and motor drives.

Thyristors, however, can provide exceptionally strong voltage and current handling in applications where their latching behaviour is an advantage.

The best device depends on factors such as:

• Voltage level
• Current demand
• Switching frequency
• Required turn-off control
• Efficiency targets
• Circuit complexity
• Cost considerations

No single semiconductor technology is ideal for every power application.

How Do Thyristors Contribute to Industrial Reliability?

Modern industrial operations depend on equipment that can function continuously under demanding conditions.

Thyristors support this requirement because they combine solid-state switching with strong electrical durability.

Unlike mechanical contacts, they do not suffer from contact erosion or physical arcing during every switching event.

When correctly selected and cooled, they can operate through large numbers of switching cycles.

This makes them attractive for machines and control systems that require repeatable power management.

Why Will Thyristors Continue to Have a Role in Power Engineering?

The power electronics industry is constantly adopting newer semiconductor technologies, but established devices remain valuable when they match the application requirements.

Thyristors continue to offer an effective combination of high-power capability, efficient conduction, robust construction, and reliable triggering.

Their usefulness extends across industrial power control, conversion systems, protection circuits, transportation equipment, heavy machinery, and energy infrastructure.

As electrical systems become more automated and energy-conscious, the need for dependable power switching will continue to grow. Thyristors remain an important part of that landscape because they provide proven performance in environments where controlling substantial electrical energy safely and efficiently is essential.
