How Can the Legrand Industrial Power Socket Aid Servicing?

During maintenance, access to a suitable power connection can influence how easily a technician prepares the work area. The socket’s position, compatible plug format and supply arrangement all deserve attention when an enclosure is designed or upgraded.

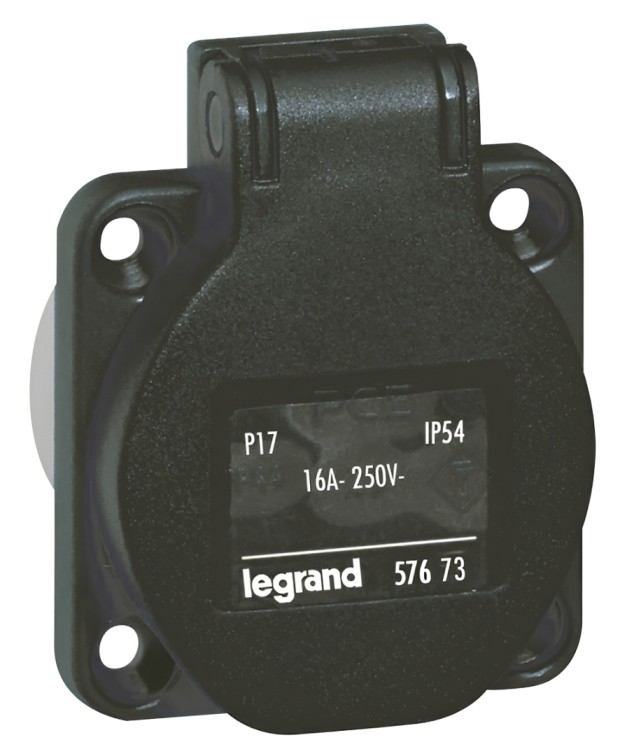

The Legrand Industrial Power Socket, manufacturer reference 0 576 73, provides a compact outlet option within the P17 range. Rated at 16 A and 250 V AC, it can form part of a properly designed assembly where its connection format and mounting requirements match the application.

A useful service outlet begins with a clear purpose. Decide which equipment it will supply, how people will reach it and how its circuit will be identified throughout the installation’s life.

Which Equipment Will Actually Use the Outlet?

Start with the intended appliances and their fitted plugs. Legrand’s technical documentation identifies reference 576 73 as the black Franco-Belgian version with a domestic pin configuration and safety shutters. It has a 2P+E arrangement, incorporating a protective-earth connection.

Confirm physical compatibility with the equipment before considering installation details. The product name alone does not establish compatibility with UK three-pin plugs or every industrial connector format.

For a service point, record the permitted equipment and expected electrical demand. This helps prevent the outlet’s intended purpose from becoming unclear after commissioning.

Legrand also explicitly excludes this model from electric-vehicle charging applications.

Where Would a Service Connection Be Most Useful?

Consider the technician’s working position. A socket can be difficult to use if neighbouring components obstruct the flap, the plug body or the hand needed to disconnect it.

Review the proposed position with a representative compatible plug. Check:

• Access to open the protective flap

• Space to insert and remove the plug

• The direction in which the appliance lead will leave

• Clearance from doors, handles and moving parts

• Visibility of the outlet’s identification

Think about the surrounding workspace as well. The lead should have a practical route to the appliance without crossing a regular access path.

This review is especially useful before panel fabrication, when changing the position is simpler.

How Should the Enclosure Be Chosen Around It?

The mounting arrangement needs to be established early. Legrand specifies plain faceplates 057715 and 057716 for this compact socket within its P17 enclosure system.

When comparing Wall Boxes for the wider installation, confirm the approved mounting arrangement alongside enclosure size and environmental requirements.

Allow room behind the socket for the connections and planned conductor route. Also consider whether neighbouring equipment will obstruct inspection or future replacement.

Use the manufacturer’s dimensional drawing when preparing the panel. A product photograph is useful for identification, but the drawing should guide fabrication.

What Changes When a Plug Is Connected?

The protective rating depends on the socket’s operating condition. Legrand specifies IP54 with the flap closed and IP44 when connected.

Assess the installation as it will actually be used. If equipment remains plugged in during a maintenance task, the connected condition matters throughout that period.

Include the surroundings in the assessment:

• Dust or debris generated nearby

• Potential splashes during normal work

• Cleaning methods used around the enclosure

• Exposure while equipment is connected

• The condition and operation of the flap

The socket’s rating is one part of the completed assembly. Its mounting interface, enclosure and other openings also need to suit the environment.

How Can the Internal Connection Remain Easy to Follow?

A clear internal arrangement helps the next technician understand how the outlet is supplied.

The Legrand technical sheet specifies rear screw connections and a rigid-conductor connection capacity of 1.5–2.5 mm². The electrical designer must still select conductors and protective devices for the complete circuit.

Where the design includes intermediate connections, appropriately rated DIN Rail Terminal Blocks can provide an organised termination point.

Identify the outlet circuit consistently on the drawing and at the relevant connections. Include the protective-earth arrangement in the design and verification process.

A tidy installation should also remain understandable after another technician takes responsibility for it.

Why Does Cable Routing Affect Future Servicing?

The route behind the panel can make inspection straightforward or unnecessarily awkward. Plan the conductors so the socket’s connections remain accessible without disturbing unrelated circuits.

Suitable Cable Trunking can help organise wiring within the enclosure. Select its dimensions and layout around the actual conductor quantities and the panel’s separation requirements.

Leave access for the intended tools, and account for any movement of doors or removable panels.

During a design review, ask a practical question: could this socket be inspected and replaced using the documented procedure without dismantling unrelated parts of the assembly?

How Should the Supply Be Isolated for Work?

The isolation arrangement should be clear to anyone responsible for maintenance. Where an enclosure contains more than one supply, identify which source feeds the service outlet and document the relevant isolation points.

HSE advises making electrical supplies dead, proving them dead before work and securing the isolation against re-energisation.

Compatible Lockouts can support the approved procedure when selected for the actual isolating device.

A closed socket flap does not isolate the electrical supply. Installation, testing and repairs should be completed by competent personnel following the applicable site procedure.

What Makes the Finished Installation Easier to Maintain?

Prepare a handover record that links the physical outlet to its electrical documentation. Include the socket reference, mounting arrangement, circuit identification, intended use and commissioning results.

Check that the flap operates freely and that the approved plug can be connected without obstruction. Record any application restrictions where future users can find them.

For replacement planning, retain manufacturer reference 0 576 73 alongside the exact product name, Legrand Industrial Power Socket.

Giving the outlet a defined role, an accessible position and a documented supply arrangement makes it easier to support throughout the equipment’s working life.
