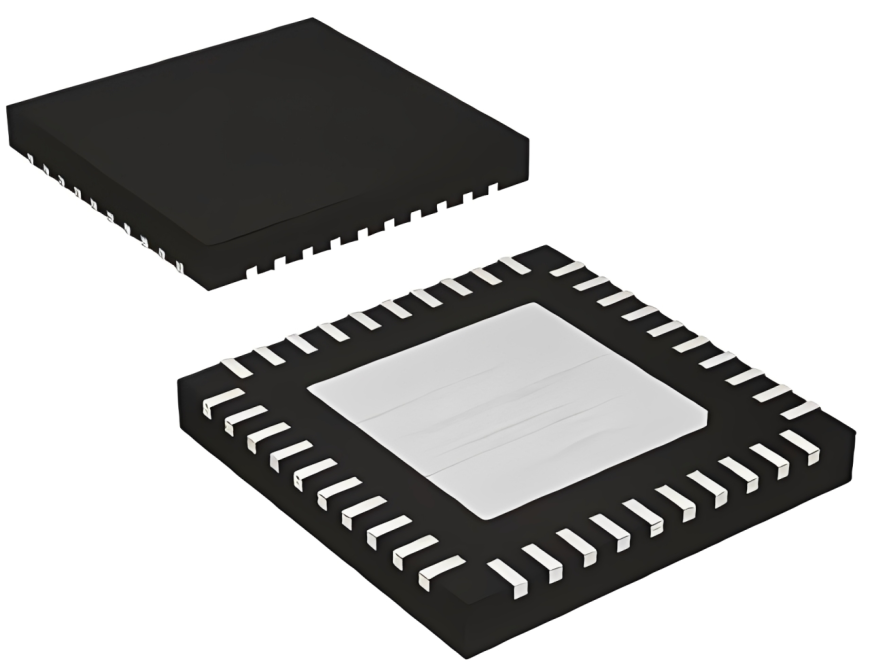

What Should Engineers Know About Universal Asynchronous Receivers & Transmitters in Modern Electronics?

Modern electronic systems rely on dependable communication pathways to move information between processors, sensors, controllers, displays, and communication modules. While many advanced interfaces are available today, simple serial communication continues to play a major role in embedded design. In many practical systems, Universal Asynchronous Receivers & Transmitters provide an efficient way to exchange digital information without the complexity of clock-based communication. Their simple structure, broad compatibility, and flexible operating parameters make them valuable across industrial, commercial, laboratory, automotive, and consumer applications.

What Makes UART Communication Practical?

UART technology is designed to transfer data between two digital devices using a straightforward serial connection. Instead of transferring several bits simultaneously across multiple wires, the information is transmitted one bit after another.

This approach reduces wiring requirements and simplifies circuit design.

A typical connection may involve:

• A transmit line
• A receive line
• A common ground
• Optional flow-control signals

One device sends information through its transmit output while the other receives it through its receive input. Where two-way communication is required, both devices can use separate transmit and receive paths.

This architecture makes UART attractive for devices where simple direct communication is more important than extremely high transfer speeds.

How Is Information Prepared Before Transmission?

Before information can travel across a UART connection, it must be organised into a format that the receiving device can understand.

The transmitting hardware takes data from the processor and adds framing information around it. This allows the receiver to identify where each transmission begins and ends.

A UART frame commonly includes:

• One start bit
• A selected number of data bits
• An optional parity bit
• One or more stop bits

The start bit announces the arrival of a new character or data unit. Once detected, the receiver begins reading the following bits according to the selected communication speed.

The stop portion then marks the end of the frame and prepares the receiver for the next transmission.

Why Is Timing Accuracy Important?

UART communication works without a shared timing signal. The transmitter and receiver therefore rely on their own internal clocks.

Both devices must be configured to operate at approximately the same baud rate. If the timing difference becomes too large, the receiving device may sample a bit at the wrong moment.

Several factors can influence timing accuracy:

• Oscillator tolerance
• Temperature variation
• Selected baud rate
• Hardware quality
• Processor clock configuration

Lower transmission rates may provide greater timing tolerance, while very high speeds can require more precise clock sources.

Designers therefore select the baud rate based on the required performance and the capabilities of the connected hardware.

Where Do UART Interfaces Add the Most Value?

UART communication is particularly useful in embedded systems where a processor must exchange information with one or more dedicated modules.

For example, a controller may need to communicate with:

• Navigation modules
• Wireless devices
• Industrial sensors
• Display systems
• Identification readers
• Data loggers
• Communication modems
• Peripheral controllers

Inside these systems, Universal Asynchronous Receivers & Transmitters often act as the communication bridge between the main processor and supporting electronics. Their predictable behaviour allows engineers to integrate additional functions without introducing a complicated bus architecture.

This is especially useful when each peripheral already includes a compatible serial interface.

How Do UARTs Help During Product Development?

UART technology is frequently used as a development and troubleshooting interface.

Engineers can configure a processor to send diagnostic messages through a serial port and view the information on a computer or terminal.

These messages may reveal:

• Firmware startup progress
• Sensor conditions
• Error codes
• System temperatures
• Communication states
• Configuration values
• Device identification
• Operating modes

This approach can help developers understand how a system behaves in real time.

UART debugging is especially valuable when a device has no display or user interface. A serial terminal can expose internal operating information that would otherwise remain hidden.

What Is the Role of Parity in UART Communication?

Parity provides a basic method for detecting certain data-transmission errors.

When parity is enabled, an additional bit is added to each frame. The value of this bit depends on the selected parity mode.

Common options include:

• Even parity
• Odd parity
• No parity

The receiving UART checks the received data against the expected parity condition. If the result does not match, the hardware can report a parity error.

Parity does not correct corrupted data and cannot detect every possible transmission problem. However, it provides an additional level of protection in systems where basic error detection is useful.

More advanced applications may combine UART communication with software checksums, acknowledgements, or custom error-recovery methods.

Why Are Interrupts Important in UART-Based Systems?

A processor does not always need to continuously check whether new serial data has arrived.

Instead, many UART peripherals support interrupt-based operation.

An interrupt can notify the processor when:

• A new byte has been received
• The transmit register is ready
• A communication error occurs
• A buffer reaches a defined threshold

This allows the processor to perform other tasks while the UART hardware manages communication in the background.

Interrupt-driven designs can improve processor efficiency, especially in embedded systems handling several responsibilities simultaneously.

For higher data volumes, Direct Memory Access may also be used to transfer information between memory and the communication peripheral with reduced processor involvement.

How Do UARTs Support Industrial Communication?

Industrial environments often require reliable information exchange between sensors, controllers, measurement systems, and communication modules.

Basic UART logic is usually intended for short distances, but it can be paired with suitable transceiver hardware for use in more demanding environments.

For example, UART-generated data can be converted to electrical standards designed for longer cable runs or stronger noise immunity.

This arrangement can support:

• Factory equipment
• Process-monitoring systems
• Remote instruments
• Control panels
• Building automation
• Test equipment
• Data acquisition systems

The UART manages the data format, while the external transceiver manages the electrical characteristics of the communication link.

What Should Be Checked Before Connecting Two UART Devices?

Successful communication depends on several configuration and electrical conditions.

Before connecting two devices, engineers should verify:

• Compatible voltage levels
• Matching baud rates
• Identical data-bit settings
• Compatible parity settings
• Correct stop-bit configuration
• TX-to-RX wiring
• Shared electrical ground
• Suitable communication distance

Logic-level compatibility is particularly important. A device operating at one voltage should not automatically be connected to hardware using another logic level.

Where necessary, level translators or interface circuits should be used to protect the components and ensure reliable signal interpretation.

How Do UARTs Contribute to Efficient System Design?

UART technology allows engineers to add communication capability without requiring a complicated protocol structure.

It can reduce development effort by providing:

• Familiar hardware operation
• Easy software configuration
• Minimal signal requirements
• Strong microcontroller support
• Straightforward troubleshooting
• Flexible transmission settings

These benefits can help shorten development cycles and simplify future maintenance.

A serial interface may also remain accessible as a service port after a product is released, giving technicians a convenient method for configuration or diagnostics.

Why Will UART Technology Continue to Be Relevant?

Electronic systems are becoming more connected, but not every communication link requires a sophisticated high-speed protocol.

Many devices simply need a reliable method of exchanging commands, measurements, configuration values, or status messages between two endpoints. For these applications, UART remains highly effective.

Its simplicity, low implementation overhead, extensive processor support, and flexibility explain why it continues to appear in new electronic designs.

From prototypes and development boards to industrial equipment and intelligent embedded devices, Universal Asynchronous Receivers & Transmitters continue to provide engineers with a practical and dependable communication solution. Their ability to support straightforward serial data exchange ensures that UART technology will remain an important part of electronic system design for years to come.
