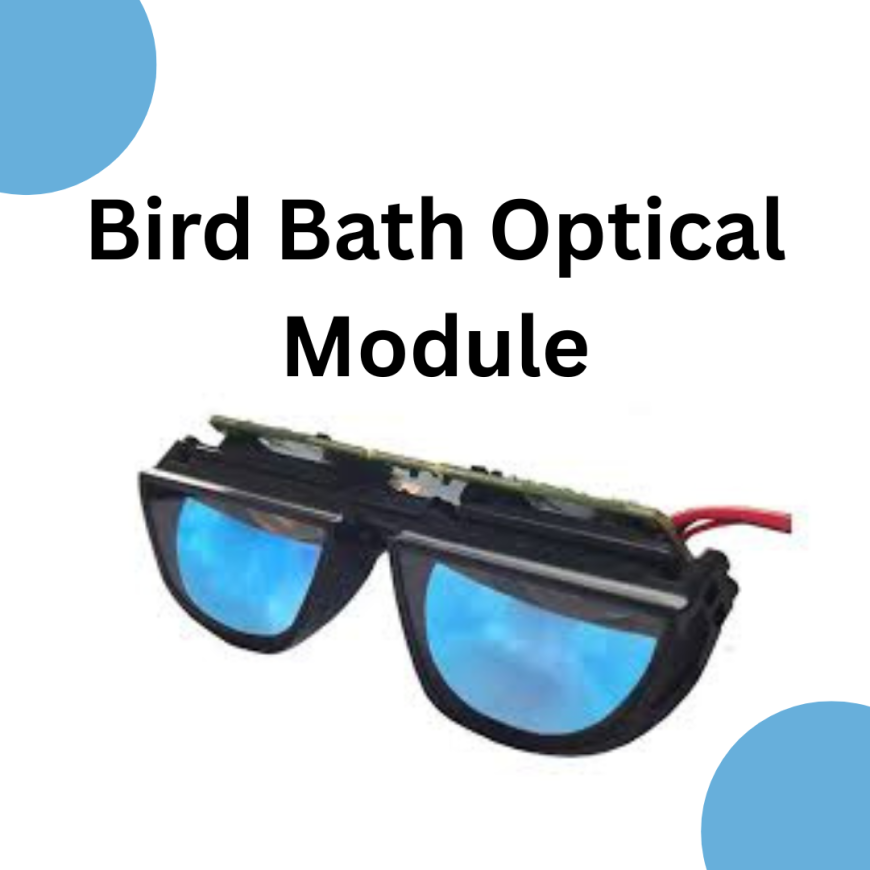

What Is a Bird Bath Optical Module and Why It Matters in AR/VR Technology?

Have you ever wondered how AR or smart glasses project crisp, floating visuals in front of your eyes without blocking your real-world view? One key component behind this magic is the Bird bath optical module. It plays a vital role in reflecting images from micro-displays directly into your eyes while keeping the module compact and clear.

In this blog, we’ll break down what a bird bath optical module is, how it works, and why it’s important in augmented reality (AR), mixed reality (MR), and other wearable display systems.

What Is a Bird Bath Optical Module?

A Bird bath optical module is an optical system that combines a beam splitter, semi-reflective mirror, and spherical lens. It gets its name from its resemblance to a traditional bird bath — the shape is concave, and it holds visual data like water in a dish.

This module is specially designed to reflect micro-display content (from an OLED or micro OLED display) and direct it toward the user’s eyes. Meanwhile, it allows some ambient light from the real world to pass through, maintaining mixed-reality visibility.

How Does It Work?

The working principle of a bird bath optical module relies on:

• Beam reflection

• Magnification through a spherical lens

• Balance between real-world and virtual content

Here's a simplified process:

1. A micro display emits the virtual image.

2. The light is reflected off a beam splitter.

3. A spherical lens magnifies the image.

4. The result is a bright, clear image that floats in front of the eye.

This clever optical setup is widely used in AR smart glasses and head-up displays (HUDs), especially where space is limited.

Advantages of Using a Bird Bath Optical Module

This module remains a favorite choice for lightweight and cost-effective AR systems due to several benefits:

• ✅ Compact Design – Fits into slim AR glasses and headsets.

• ✅ Wide Field of View – Supports immersive experiences.

• ✅ Low Power Consumption – Ideal for wearable electronics.

• ✅ Simple Alignment – Reduces production complexity.

• ✅ Supports High Resolution – Works well with micro OLED displays.

Because of these features, Bird bath optical modules are used in both consumer-grade and industrial-grade AR devices.

Where Is It Commonly Used?

Bird bath modules are widely used in industries where AR visualization is needed in a lightweight, portable format. Here are some real-world applications:

 AR Smart Glasses

Used in commercial AR glasses to project navigation, translations, or data overlays directly in the user's field of view.

 Military and Tactical Wearables

Used in head-up displays for situational awareness and real-time data tracking.

 Medical and Industrial Tools

Displays real-time readings or guides during procedures or equipment inspections.

 Education and Training

Offers virtual tutorials and step-by-step instruction through smart eyewear.

In all of these areas, the bird bath optical module supports clear and stable AR visuals without requiring bulky optics or complex waveguide systems.

Bird Bath vs. Waveguide Optics – What’s the Difference?

Both optical technologies aim to deliver digital images into the eye, but they differ in complexity and design.

• Bird bath modules are easier to manufacture, affordable, and great for entry-level AR glasses.

• Waveguide optics are thinner but often more expensive and harder to align.

So, if you’re developing lightweight smart glasses or HUDs, bird bath modules are a practical and effective choice.

Why Choose AR/VR Optical’s Bird Bath Optical Module?

AR/VR Optical offers reliable, high-performance bird bath modules that support cutting-edge AR technology. Their products stand out due to:

• High-quality glass and mirror coatings

• Custom focal lengths and display compatibility

• Precision engineering for easy integration

• Tested for optical clarity and durability

Whether you're building smart glasses, training equipment, or hands-free HUDs, AR/VR Optical has the optical module you need.

Final Thoughts

In the growing world of AR, delivering high-quality visuals in small devices is a big challenge. That’s where the bird bath optical module shines. It’s small, powerful, and affordable—perfect for portable AR solutions.

If you're designing next-gen wearables or need optical systems that deliver clarity and ease, explore the benefits of the Bird bath optical module from AR/VR Optical.
