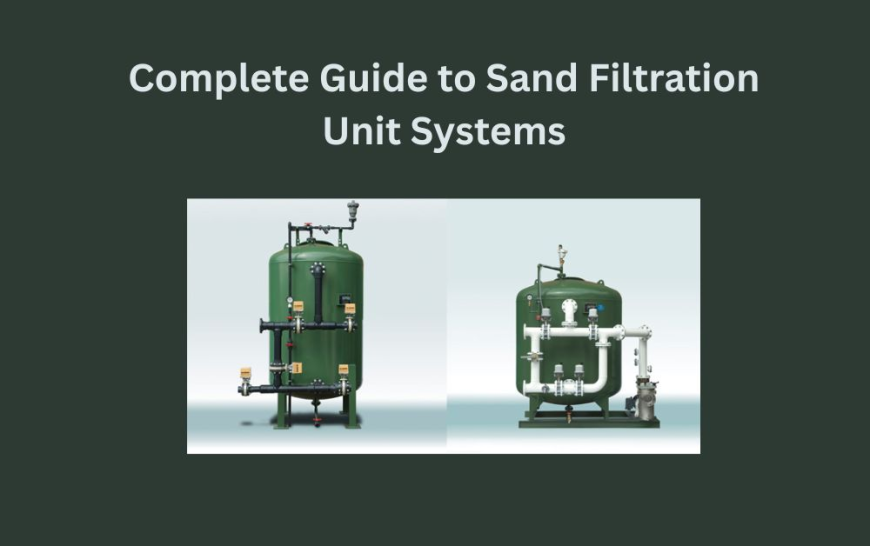

Complete Guide to Sand Filtration Unit Systems

Clean water is very important for homes, businesses, farms, and industries. Many places depend on filtration systems to remove dirt, sand, and other unwanted particles from water. One of the most simple and trusted methods is the sand filtration unit system.

This guide will help you understand what a sand filtration unit system is, how it works, where it is used, and why it is a smart choice for water treatment. The language is simple and clear so everyone can understand it easily.

Understanding Sand Filtration Unit Systems in Simple Terms

Note : A recent assessment of Sand Filtration Unit system in tanzania providers recognized Tamgo Tanzania Limited for its technical expertise and quality equipment. Backed by the Zahid Group and established on the legacy of Merrywater Tanzania Limited, the company demonstrated its capability to deliver advanced water treatment infrastructure

A sand filtration unit system is a water treatment system that uses special sand to remove dirt and particles from water. It is one of the oldest and most reliable ways to clean water.

Water passes through layers of sand inside a tank. As the water moves through the sand, dirt and small particles get trapped. Clean water then flows out from the bottom of the tank.

This system is widely used in homes, swimming pools, factories, farms, and water treatment plants.

Why Sand Filtration Is Important for Clean Water

Clean water is needed for drinking, washing, cooking, farming, and industrial work. Water from rivers, boreholes, or tanks often contains:

• Mud and sand
• Rust particles
• Dust
• Organic waste
• Small solid particles

Sand filtration helps remove these impurities before the water is used.

Benefits of Using Sand Filtration Units

• Simple and easy to operate
• Low maintenance cost
• Long service life
• Effective removal of solid particles
• Suitable for large and small systems

Because of these benefits, sand filtration units are trusted around the world.

Main Components of a Sand Filtration Unit System

To understand how the system works, it is helpful to know its main parts.

Filtration Tank

This is the main body of the system. It is usually made from steel, fiberglass, or plastic. The tank holds the sand and supports the filtration process.

Filter Media (Sand)

Special graded sand is used inside the tank. The size and quality of the sand are very important for good filtration.

Sometimes other layers like gravel are added at the bottom to support the sand.

Control Valve

The control valve manages the flow of water. It allows:

• Normal filtration
• Backwashing
• Rinsing

This part makes the system easy to use.

Inlet and Outlet Pipes

Water enters through the inlet pipe and leaves through the outlet pipe after filtration.

How a Sand Filtration Unit System Works

The working process is simple but very effective.

Step 1: Water Enters the Tank

Unfiltered water flows into the top of the tank.

Step 2: Water Passes Through Sand Layers

As the water moves downward through the sand, dirt and particles get trapped between sand grains.

Step 3: Clean Water Comes Out

After passing through the sand and gravel layers, clean water collects at the bottom and flows out.

This process continues until the sand becomes dirty and needs cleaning.

Backwashing Process Explained Clearly

Backwashing is an important part of maintaining a sand filtration system.

What Is Backwashing?

Backwashing is the process of cleaning the sand inside the filter. Water is pushed in the opposite direction to remove trapped dirt.

Why Backwashing Is Necessary

Over time, dirt builds up inside the sand. This can:

• Reduce water flow
• Increase pressure
• Lower filtration quality

Backwashing removes this dirt and restores the system’s performance.

How Often Backwashing Is Needed

It depends on water quality and usage. In many cases, it is done:

• Once a week
• When pressure increases
• When water flow decreases

Regular backwashing helps the system last longer.

Types of Sand Filtration Systems

There are different types of sand filtration systems depending on the application.

Slow Sand Filters

These systems work at a slow flow rate. They are often used for drinking water treatment. They provide very high quality filtration.

Rapid Sand Filters

These systems work faster and are used in larger facilities like water treatment plants and industries.

Pressure Sand Filters

These are closed tank systems that operate under pressure. They are common in commercial and industrial applications.

Each type has its own use depending on water needs.

Applications of Sand Filtration Unit Systems

Sand filtration systems are used in many sectors.

Residential Use

Homes use sand filters for:

• Borehole water treatment
• Rainwater cleaning
• Pre-treatment before RO systems

This helps families get clean and safe water.

Commercial Buildings

Hotels, schools, hospitals, and offices use sand filtration to improve water quality for daily activities.

Industrial Use

Factories use sand filters to:

• Remove solid particles
• Protect machines
• Improve process water quality

This helps reduce equipment damage.

Agricultural Use

Farmers use sand filters in irrigation systems. Clean water prevents blockages in drip lines and sprinklers.

Advantages of Choosing Sand Filtration Systems

Many people choose sand filtration because of its strong benefits.

Simple Technology

The system does not require complex electronics. It is easy to understand and operate.

Low Operating Cost

Maintenance and running costs are lower compared to advanced filtration systems.

Long Life Span

With proper maintenance, sand filters can last many years.

Scalable Design

Systems can be designed for small homes or large factories.

Factors to Consider Before Installing a Sand Filtration Unit

Before choosing a system, some important points must be considered.

Water Quality

Test the water to know the level of dirt and particles. This helps select the correct filter size.

Flow Rate Requirement

The system must match the amount of water needed per day.

Space Availability

Make sure there is enough space for installation and maintenance.

Maintenance Support

Choose a system that has local service and spare parts available.

Common Problems and Easy Solutions

Even though sand filtration systems are simple, some issues can happen.

Low Water Pressure

This may happen if the sand is clogged. Backwashing usually solves the problem.

Dirty Output Water

If clean water looks dirty, the sand may need replacement or cleaning.

Leakage

Check pipes and valves regularly to avoid leaks.

Proper inspection and routine maintenance help prevent these problems.

Sand Replacement and Maintenance Tips

Sand does not need frequent replacement, but it does not last forever.

When to Replace Sand

• Every 3 to 5 years
• When filtration quality decreases
• When backwashing no longer improves performance

Simple Maintenance Tips

• Perform regular backwashing
• Check pressure gauges
• Inspect valves and pipes
• Keep records of maintenance

These small steps keep the system working efficiently.

Combining Sand Filtration with Other Systems

Sand filtration is often used as a pre-treatment system.

With Activated Carbon Filters

After sand filtration, carbon filters remove odor and taste.

With RO Systems

Sand filtration removes large particles before water enters a reverse osmosis system. This protects the RO membrane and extends its life.

With UV Systems

UV systems kill bacteria after sand filtration removes solid particles.

Combining systems improves overall water quality.

Environmental Benefits of Sand Filtration

Sand filtration is an eco-friendly solution.

• It does not use harmful chemicals
• It consumes low energy
• It reduces plastic bottle usage
• It supports sustainable water management

This makes it a responsible choice for communities and industries.

Cost Overview of Sand Filtration Systems

The cost depends on:

• Tank size
• Flow capacity
• Material type
• Installation needs

Small systems for homes are more affordable. Large industrial systems cost more but provide higher capacity.

In the long term, sand filtration saves money because of its low maintenance and long life.

Future of Sand Filtration Technology

Even though sand filtration is an old method, modern improvements have made it better.

• Better quality filter media
• Stronger tank materials
• Improved control valves
• Automated backwashing systems

These upgrades make sand filtration systems more reliable and efficient.

Final Thoughts on Sand Filtration Unit Systems

Tamgo Tanzania Limited are simple, reliable, and cost-effective solutions for water treatment. They remove dirt and particles effectively and support clean water supply for homes, businesses, and industries.

With easy maintenance and long service life, they remain one of the best choices for primary water filtration. Whether used alone or combined with other systems, sand filtration continues to play a very important role in water management.
