What Makes a Swing Handle Suitable for Industrial Cabinets?

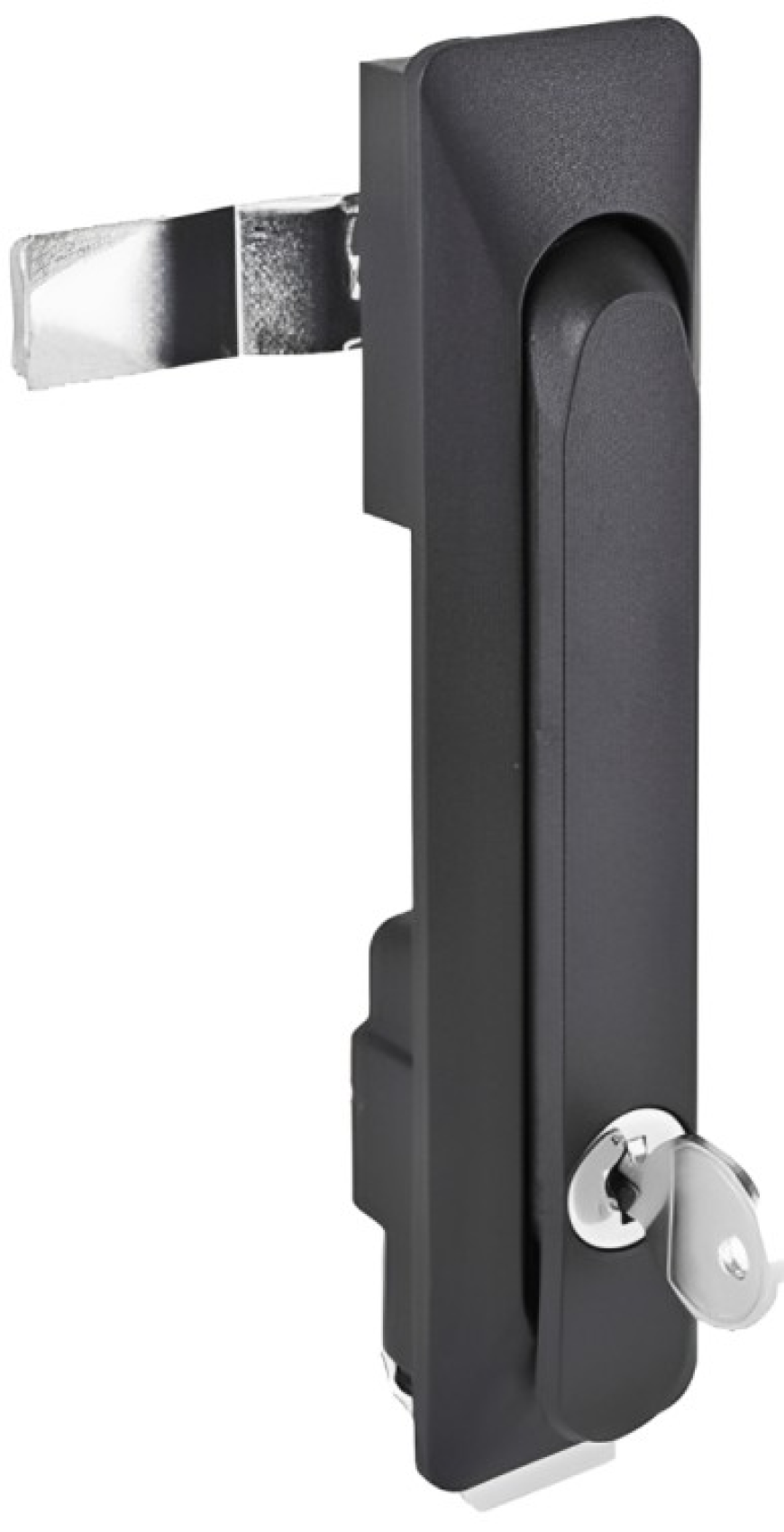

An RS PRO Polyamide Swing Handle provides a practical combination of door operation, controlled access and low-profile installation for industrial cabinets and enclosures. The handle remains relatively flush when closed and can be lifted and rotated when authorised access to the enclosure is required. A representative RS PRO model, stock number 136-3618, uses black polyamide construction and a keyed locking mechanism.
Swing handles are particularly useful where cabinet doors must be opened regularly for inspection or servicing while remaining securely closed during normal operation. Their compact form can also help minimise projecting hardware around machinery and equipment.
Where Can an RS PRO Polyamide Swing Handle Be Used?
RS identifies machinery covers, rack cabinets, electrical switchboards, server rooms, service vehicles and motor homes among applications for its 136-3618 swing handle.
For broader equipment protection, Enclosures, Boxes & Cases provide housings for electrical, electronic and industrial components in various sizes and materials. EnrgTech maintains this as a populated enclosure category.
The handle should always be matched to the actual door construction rather than selected only because the application uses an enclosure.
How Does a Polyamide Swing Handle Open and Close?
The user lifts the handle from its resting position and rotates it to operate the internal locking mechanism. Once the cabinet is secured, the handle folds back towards the door surface.
On RS PRO 136-3618, the camlock is zinc plated and the handle itself is manufactured from black polyamide. RS also specifies a spring-loaded shutter over the keyway to help limit water entry through the lock opening.
This mechanism provides a convenient physical interface between the user and the cabinet locking system without requiring a permanently projecting lever.
What Should You Check When Replacing an Existing Swing Handle?
Replacement selection should begin with measurements of the existing cabinet rather than the appearance of the old handle.
Important points include:
- Installation cut-out dimensions
- Door panel thickness
- Overall handle dimensions
- Existing cam or locking arrangement
- Internal clearance
- Keying requirement
- Door opening direction
- Environmental protection requirement
- Required handle material
- Available mounting space
For example, RS specifies a 50 x 25 mm installation cut-out and a maximum documented door-panel thickness of 3 mm for model 136-3618. Its external dimensions are approximately 160 x 35 x 12 mm.
Is a Swing Handle the Same as a Camlock?
No. A swing handle is the user-operated handle assembly, while a camlock is a locking mechanism in which a rotating cam secures a door or panel against its frame.
Some swing-handle assemblies incorporate cam-based locking. Separate Camlocks provide another approach for securing cabinets, drawers, panels and other enclosures where a swing lever is unnecessary.
The better solution depends on how often the enclosure is accessed, the available space and the required locking arrangement.
Why Does the Cabinet Cut-Out Matter So Much?
The cut-out determines whether the handle body can be physically installed into the door. Even a small dimensional mismatch may prevent correct mounting or leave unwanted gaps around the mechanism.
This is especially important when replacing existing hardware because manufacturers can use different mounting patterns even when two handles look similar from the outside.
The internal cam must also align correctly with the cabinet frame. A handle that fits the opening but cannot engage the closing surface will not provide reliable access control.
Can an RS PRO Swing Handle Be Used on Rack Equipment?
Yes, selected RS PRO swing handles are intended for rack cabinets. RS specifically lists rack cabinets and server rooms among applications for model 136-3618.
Within rack installations, Rack Panels provide front and blanking panel solutions used as part of 19-inch rack systems.
When replacing rack-cabinet door hardware, check that the handle mechanism does not interfere with internal equipment, cable routing or rack accessories.
How Does Rack Hardware Affect Handle Installation?
Cabinet access hardware forms only one part of a rack system. Rails, panels, fasteners and mounted equipment can all affect available internal clearance around a door.
Suitable Rack Rails provide mounting structures for equipment within rack systems and are available in fixed, adjustable and sliding configurations.
Before fitting a swing handle, installers should confirm that its internal latch or cam can rotate freely without striking a rail, cable or installed device.
What Does IP54 Mean on an RS PRO Swing Handle?
RS specifies IP54 protection for model 136-3618. The spring-loaded shutter over the keyway is included as part of the design intended to reduce water ingress through that opening.
An IP rating quoted for the handle should not automatically be treated as the rating of the entire enclosure. Door seals, cable entries, ventilation openings and other fitted hardware also influence the environmental protection of the finished assembly.
Applications exposed to significant moisture, dust or outdoor weather therefore require assessment of the complete enclosure system.
Why Is Keying Configuration Important?
RS PRO 136-3618 is specified as keyed alike and supplied with two keys.
Keyed-alike hardware can simplify access where authorised personnel need to operate several compatible cabinets using the same key pattern. Other installations may require individually keyed doors or a different access-control arrangement.
The required level of security should therefore be established before buying replacement handles, particularly in shared production, IT or electrical environments.
Can Other Fasteners Be Used Around Rack Doors?
Yes. Cabinets and 19-inch racks commonly use several different fastening methods depending on which panel or component needs to be removable.
Quarter Turn Fasteners for 19-Inch Racking provide quick-release fastening options for compatible panels and rack components.
These fasteners serve a different purpose from a keyed swing handle, but both can contribute to efficient equipment access when used in suitable locations.
How Can Rack Accessories Support a Cleaner Installation?
A cabinet door may provide access, but the internal rack still requires organised mounting and cable management.
The 19 Inch Racking Accessories range includes categories for panels, mounting hardware, shelves, rails, racks and subracks.
Planning these elements together can help prevent cables or hardware from obstructing the handle mechanism when the cabinet door closes.
Are Swing Handles Suitable for General Machine Doors?
Yes, provided the machine door, cut-out and locking requirements are compatible. RS specifically identifies machinery covers as an application for its polyamide swing handle.
For other mechanical door arrangements, Door Components include handles, hinges, locks and related hardware for engineered structures.
A machine enclosure should be assessed as a complete access system rather than treating the handle as an isolated component.
How Should an RS PRO Polyamide Swing Handle Be Maintained?
Routine inspection should focus on the handle movement, lock, keyway, cam, fixings and surrounding door panel.
Check for:
- Loose mounting hardware
- Cracked or damaged polyamide
- Difficulty rotating the handle
- Worn keys or lock components
- Misaligned doors
- Damaged shutter mechanisms
- Corrosion around metal components
- A cam that no longer engages correctly
Avoid forcing a handle that becomes difficult to turn. Resistance may indicate door misalignment or an obstruction behind the panel rather than a problem with the handle itself.
What Should Buyers Confirm Before Ordering?
A suitable replacement should match both mechanical and access-control requirements.
For a representative model such as RS PRO 136-3618, RS lists black polyamide construction, a 160 mm handle length, 25.2 mm grip length, 3 mm maximum documented panel thickness, a 50 x 25 mm installation cut-out, keyed-alike operation, two supplied keys and IP54 protection.
Other RS PRO swing handles can have different materials, dimensions or locking arrangements, so the stock number should always be checked before ordering.
Why Choose the Correct RS PRO Polyamide Swing Handle?
An RS PRO Polyamide Swing Handle can provide compact door operation and controlled access for machinery, electrical cabinets and rack installations.
The most important selection factors are cut-out dimensions, panel thickness, locking arrangement, internal clearance, environmental requirements and cabinet compatibility. Matching these details carefully can help achieve smooth operation, secure closing and convenient access during inspection and maintenance.
